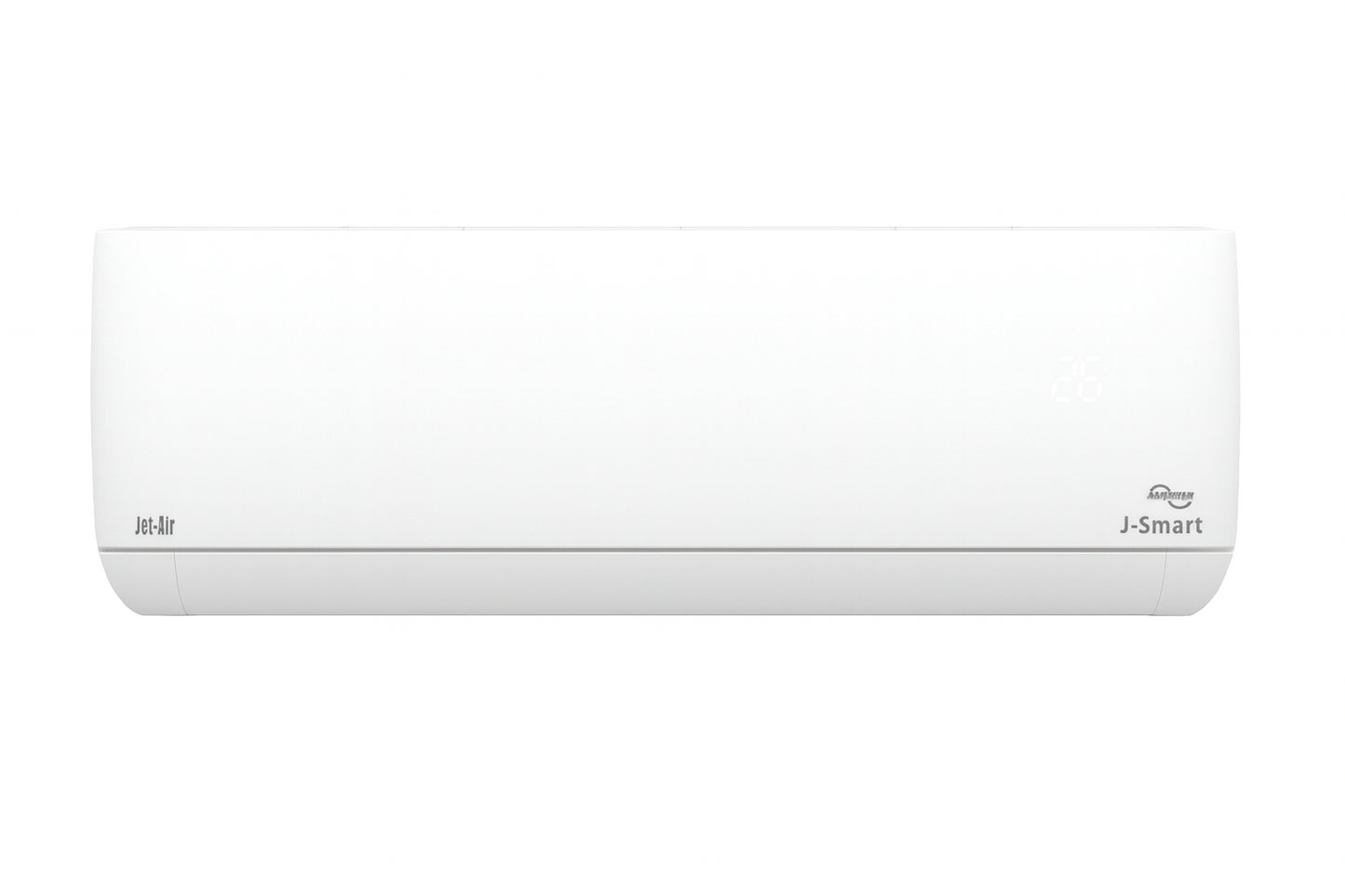

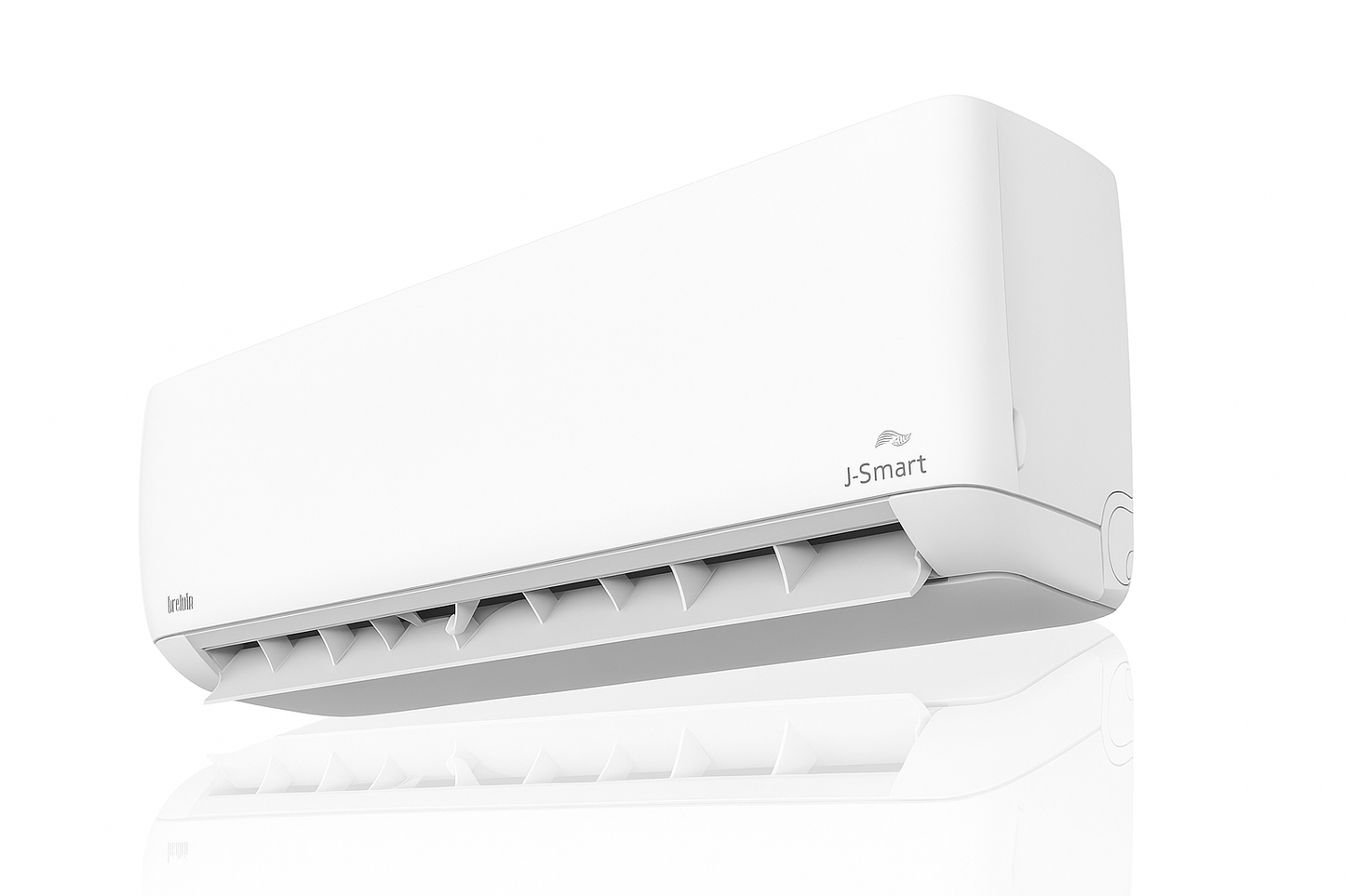

Jet-Air J-SMART 12 000 BTU MID WALL SPLIT (WIFI) (INVERTER)
Jet-Air J-SMART 12 000 BTU MID WALL SPLIT (WIFI) (INVERTER)
Couldn't load pickup availability
jj
Installation included
The J-Smart Inverter Series combines sleek design with powerful performance, providing year-round comfort for homes and offices. Using advanced DC inverter technology, it delivers fast, energy-efficient cooling and heating while keeping noise levels exceptionally low.
Built with R410A eco-friendly refrigerant, the J-Smart ensures reliable operation with minimal environmental impact. Its smart temperature control, wide-angle airflow, and high-density filtration system create a consistently fresh and healthy indoor environment.
Key Features:
- Built-in Wifi device for seamless connectivity
- JASA Smart Home App will be the one place to control all of your smart appliances
- Energy-efficient DC inverter for stable temperature control
- Low-noise operation for quiet comfort
- R410A refrigerant – environmentally friendly and efficient
- Wide-angle airflow for even room cooling and heating
- Smart self-cleaning function for easier maintenance
- Turbo mode for rapid temperature adjustment
- Auto-restart and sleep mode for convenience
Perfect for South African homes, offices, and light-commercial spaces seeking durable, energy-saving climate control.
What the unit comes with:
- Installation included
- standard 3m piping and cable kit
- Condenser Brackets
- 1 length of trunking
- 1 weatherproof isolator
The unit does not come with
- any ceiling/building/paintworks
- Drain pump ( A drain pump is needed when the indoor unit’s condensate water cannot flow out by gravity, typically when the drain pipe runs upward or over a long distance.)
-
Power Supply: This unit must be connected by a qualified electrician and does not include a power supply cable — an electrical connection is required during installation.
- We’ll connect your unit to the nearest accessible power point during installation.
If no outlet is available, our team will test the aircon using a temporary extension connection.
Please note: it remains the client’s responsibility to have a qualified electrician install a permanent power supply if one is not already provided.
J-Smart Inverter Brochure
📧 info@swiftaircon.co.za | ☎️ 011 868 2055 | WhatsApp 069 251 0588
What is a Back to Back Installation
What is a Back to Back Installation
Back-to-Back Installation (Standard Option)
A back-to-back installation is the most common and cost-effective setup for wall-mounted air conditioners. This means the indoor unit is mounted directly opposite the outdoor condenser, with only one wall separating the two. The refrigerant piping, drain, and electrical connections pass straight through the wall — keeping installation simple, neat, and efficient.
This layout is our standard installation option included in the quoted price for all midwall split units. If your setup requires additional piping, trunking, or a longer distance between the units, our team will assess your site and provide an updated quotation before proceeding.
What if my unit is not back-to-back?
What if my unit is not back-to-back?
If your indoor and outdoor units cannot be installed directly behind one another (back-to-back), we can still assist by extending the piping and cables to suit your layout. In some complexes or properties, the outdoor unit needs to be positioned out of sight
In these cases, Swift Air offers additional piping and trunking at an extra cost. Our team will assess your site and ensure the most practical and cost-effective solution, keeping your system neat, compliant, and operating efficiently.
What if there’s no electrical connection available?
What if there’s no electrical connection available?
Our standard installation does not include electrical wiring to the DB board. The air conditioner will be connected to the nearest existing power point if one is available. If no power supply is present, the client will need to arrange a new electrical connection with a qualified electrician — or we can assist in arranging one through our trusted partners.
Once payment is confirmed, our Swift Air team will contact you shortly to schedule your installation and ensure everything is prepared for a smooth setup.
What size air conditioner do I need?
What size air conditioner do I need?
The size of your air conditioner depends on the room size, ceiling height, insulation, and sunlight exposure. Choosing the correct size ensures optimal cooling, energy efficiency, and longer unit lifespan.
As a general guideline:
- 9,000 BTU – up to 18 m² (small bedrooms or offices)
- 12,000 BTU – up to 25 m² (medium rooms or living areas)
- 18,000 BTU – up to 36 m² (large bedrooms or lounges)
- 24,000 BTU – up to 48 m² (open-plan areas)
If you’re unsure which capacity is best for your space, Swift Air Conditioning & Refrigeration Services can assist with a professional recommendation based on your room layout and cooling needs.
